Springboot快速集成Camunda工作流

引言

为什么需要工作流引擎?

在当今快速变化的商业环境中,企业需要处理越来越复杂的业务流程。想象一下:一个员工请假申请需要经过部门经理审批、HR备案、财务记录等多个环节;一个电商订单需要经历库存检查、支付确认、发货通知、物流跟踪等步骤。这些业务流程如果硬编码在系统中,不仅难以维护,更无法快速适应业务变化。

一、什么是Camunda?

  • Camunda 是一个开源的工作流和业务流程管理平台,基于BPMN 2.0(业务流程模型与标记)标准构建。它提供了一个强大的流程引擎,允许开发人员将复杂的业务流程建模、执行、监控和优化。

1、传统开发 vs Camunda开发的对比:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
// 传统硬编码方式 - 紧密耦合,难以维护
public class LeaveApplicationService {
public void applyLeave(LeaveRequest request) {
// 1. 保存申请
leaveRepository.save(request);

// 2. 通知部门经理
emailService.notifyManager(request);

// 3. 如果经理批准,通知HR
// 4. 如果HR通过,更新考勤系统
// ... 更多嵌套的条件判断
}
}

// 使用Camunda - 关注点分离,易于维护
@Service
public class LeaveApplicationService {

@Autowired
private RuntimeService runtimeService;

public void applyLeave(LeaveRequest request) {
// 启动流程,具体步骤在BPMN图中定义
runtimeService.startProcessInstanceByKey(
"LeaveProcess",
Variables.putValue("leaveRequest", request)
);
}
}

2、核心组件

组件 功能描述 适用场景
Camunda Engine 核心流程引擎,负责执行BPMN流程 嵌入到Java应用中
Camunda Modeler 图形化流程设计工具 业务流程建模
Camunda Tasklist 用户任务管理界面 人工任务处理
Camunda Cockpit 流程监控和管理控制台 流程运维和监控
Camunda Optimize 流程分析和优化工具 性能分析和改进

二、Springboot快速开始

1、引入依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<!-- springboot集成 -->
<dependency>
<groupId>org.camunda.bpm.springboot</groupId>
<artifactId>camunda-bpm-spring-boot-starter</artifactId>
<version>${camunda.version}</version>
</dependency>
<!-- Camunda 提供的 Web 界面(如 Tasklist、Cockpit) -->
<dependency>
<groupId>org.camunda.bpm.springboot</groupId>
<artifactId>camunda-bpm-spring-boot-starter-webapp</artifactId>
<version>${camunda.version}</version>
</dependency>

<!-- 扩展和可选 提供REST API,允许外部应用通过HTTP协议与引擎交互 -->
<dependency>
<groupId>org.camunda.bpm.springboot</groupId>
<artifactId>camunda-bpm-spring-boot-starter-rest</artifactId>
<version>${camunda.version}</version>
</dependency>

<!-- Mysql驱动 -->
<dependency>
<groupId>com.mysql</groupId>
<artifactId>mysql-connector-j</artifactId>
<version>${mysql.version}</version>
</dependency>

2、配置yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
server:
port: 8081

camunda.bpm:
database:
type: mysql
schema-update: true # 首次启动设置为true,自动创建表
admin-user:
id: admin #用户名
password: admin #密码
firstName: rstyro-
filter:
create: All tasks
# 自动部署resources/下的BPMN文件
auto-deployment-enabled: true
# 历史级别: none, activity, audit, full
history-level: full
generic-properties:
properties:
historyTimeToLive: P30D # 设置全局默认历史记录生存时间为30天
enforceHistoryTimeToLive: false # 可选:禁用强制TTL检查
# 作业执行配置
job-execution:
enabled: true
core-pool-size: 3
max-pool-size: 10

# mysql连接信息
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
type: com.mysql.cj.jdbc.MysqlDataSource
url: jdbc:mysql://localhost:3306/camunda
username: root
password: root
jackson:
date-format: yyyy-MM-dd HH:mm:ss
time-zone: GMT+8

# 日志配置
logging:
level:
org.camunda: INFO
org.springframework.web: INFO

3、camunda的表解释

表类别与前缀 核心职责 数据生命周期特点 代表性数据表
ACT_GE_* (通用数据) 存储引擎的二进制资源、属性配置和版本日志。 静态或长期存在,与流程定义同生命周期。 ACT_GE_BYTEARRAY, ACT_GE_PROPERTY
ACT_RE_* (资源存储) 存储流程定义、决策规则等“静态”部署资源。 静态数据,部署后一般不变化,是流程的蓝图。 ACT_RE_PROCDEF, ACT_RE_DEPLOYMENT
ACT_RU_* (运行时) 存储正在运行的流程实例、任务、变量等实时数据。 临时数据,流程实例结束后立即被删除,保持表小而快。 ACT_RU_TASK, ACT_RU_EXECUTION, ACT_RU_VARIABLE
ACT_HI_* (历史记录) 记录所有流程实例的完整历史、活动和变量变更。 历史数据,长期保存,用于查询、报告与审计。 ACT_HI_PROCINST, ACT_HI_ACTINST, ACT_HI_VARINST
ACT_ID_* (身份认证) 管理用户、用户组以及他们之间的关联关系。 基础主数据,独立于流程生命周期。 ACT_ID_USER, ACT_ID_GROUP, ACT_ID_MEMBERSHIP

4、业务流程建模

安装Camunda Modeler

我们一般会在Camunda Modeler 画出整个工作流的流程,然后导出 .bpmn 文件,然后在代码里面加载文件,进行编码的。

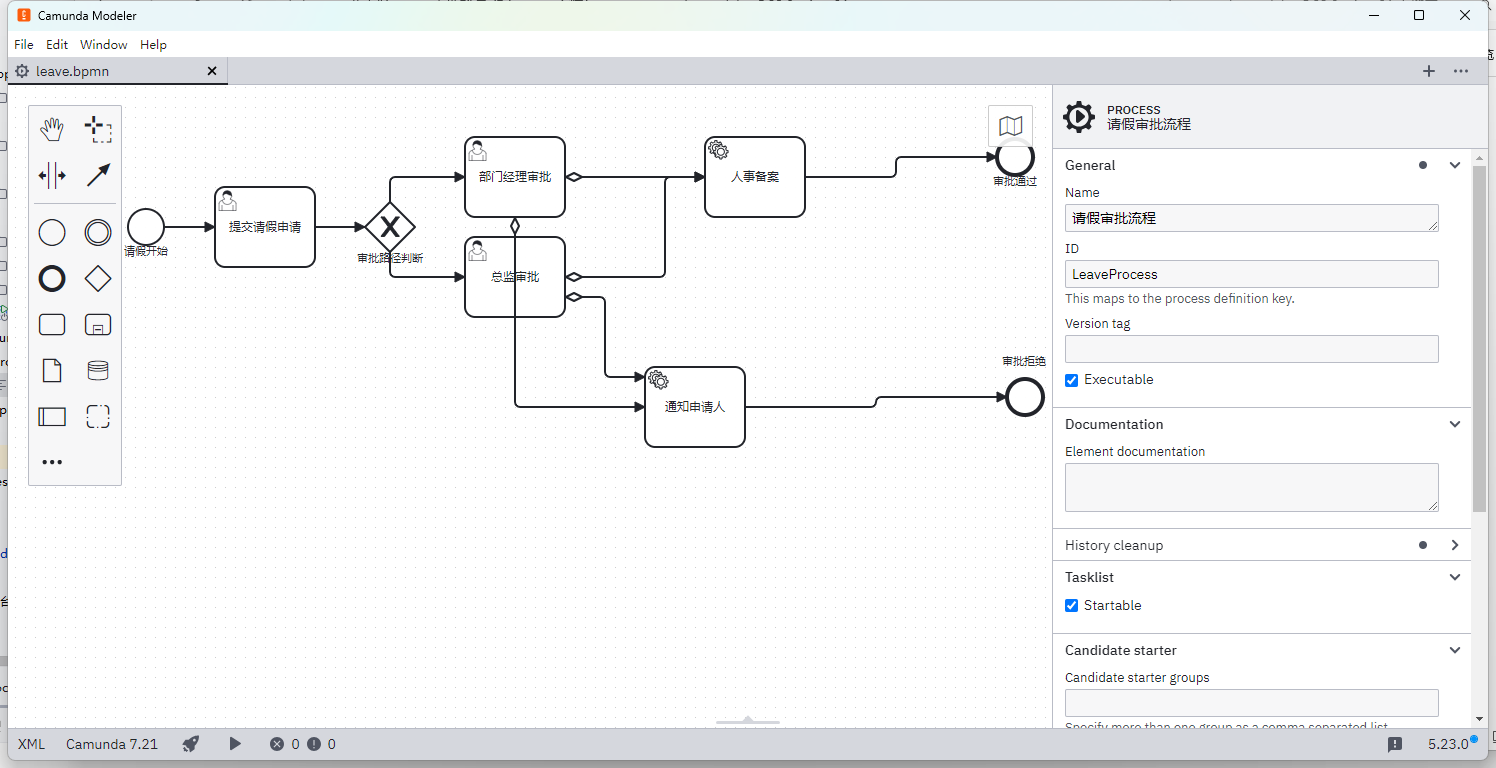

请假工作流流程

我们的BPMN文件内容放在src/main/resources/process/leave.bpmn中:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions
xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL"
xmlns:camunda="http://camunda.org/schema/1.0/bpmn"
xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
xmlns:dc="http://www.omg.org/spec/DD/20100524/DC"
xmlns:di="http://www.omg.org/spec/DD/20100524/DI"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:modeler="http://camunda.org/schema/modeler/1.0" id="Definitions_LeaveProcess" targetNamespace="http://bpmn.io/schema/bpmn" exporter="Camunda Modeler" exporterVersion="5.23.0" modeler:executionPlatform="Camunda Platform" modeler:executionPlatformVersion="7.21.0">
<bpmn:process id="LeaveProcess" name="请假审批流程" isExecutable="true" camunda:historyTimeToLive="P30D">
<bpmn:startEvent id="StartEvent_1" name="请假开始">
<bpmn:outgoing>Flow_StartToApply</bpmn:outgoing>
</bpmn:startEvent>
<bpmn:userTask id="UserTask_ApplyLeave" name="提交请假申请" camunda:assignee="${applicant}">
<bpmn:extensionElements>
<camunda:formData>
<camunda:formField id="leaveType" label="请假类型" type="string" defaultValue="年假">
<camunda:value id="annual">年假</camunda:value>
<camunda:value id="sick">病假</camunda:value>
<camunda:value id="personal">事假</camunda:value>
</camunda:formField>
<camunda:formField id="startDate" label="开始时间" type="string">
<camunda:properties>
<camunda:property id="datePattern" value="yyyy-MM-dd HH:mm:ss" />
</camunda:properties>
</camunda:formField>
<camunda:formField id="endDate" label="结束时间" type="string">
<camunda:properties>
<camunda:property id="datePattern" value="yyyy-MM-dd HH:mm:ss" />
</camunda:properties>
</camunda:formField>
<camunda:formField id="leaveDays" label="请假天数" type="long" />
<camunda:formField id="reason" label="请假事由" type="string" />
</camunda:formData>
</bpmn:extensionElements>
<bpmn:incoming>Flow_StartToApply</bpmn:incoming>
<bpmn:outgoing>Flow_ApplyToGateway</bpmn:outgoing>
</bpmn:userTask>
<bpmn:exclusiveGateway id="Gateway_ApprovalPath" name="审批路径判断">
<bpmn:incoming>Flow_ApplyToGateway</bpmn:incoming>
<bpmn:outgoing>Flow_GatewayToManager</bpmn:outgoing>
<bpmn:outgoing>Flow_GatewayToDirector</bpmn:outgoing>
</bpmn:exclusiveGateway>
<bpmn:userTask id="UserTask_ManagerApprove" name="部门经理审批" camunda:assignee="${departmentManager}">
<bpmn:extensionElements>
<camunda:formData>
<camunda:formField id="managerApproved" label="审批结果" type="boolean">
<camunda:value id="true">同意</camunda:value>
<camunda:value id="false">拒绝</camunda:value>
</camunda:formField>
<camunda:formField id="managerComment" label="审批意见" type="string" />
</camunda:formData>
</bpmn:extensionElements>
<bpmn:incoming>Flow_GatewayToManager</bpmn:incoming>
<bpmn:outgoing>Flow_ManagerToEnd</bpmn:outgoing>
<bpmn:outgoing>Flow_ManagerReject</bpmn:outgoing>
</bpmn:userTask>
<bpmn:userTask id="UserTask_DirectorApprove" name="总监审批" camunda:assignee="${director}">
<bpmn:extensionElements>
<camunda:formData>
<camunda:formField id="directorApproved" label="审批结果" type="boolean">
<camunda:value id="true">同意</camunda:value>
<camunda:value id="false">拒绝</camunda:value>
</camunda:formField>
<camunda:formField id="directorComment" label="审批意见" type="string" />
</camunda:formData>
</bpmn:extensionElements>
<bpmn:incoming>Flow_GatewayToDirector</bpmn:incoming>
<bpmn:outgoing>Flow_DirectorToEnd</bpmn:outgoing>
<bpmn:outgoing>Flow_DirectorReject</bpmn:outgoing>
</bpmn:userTask>
<bpmn:serviceTask id="ServiceTask_HRRecord" name="人事备案" camunda:class="top.lrshuai.camunda.service.HRRecordService">
<bpmn:incoming>Flow_ManagerToEnd</bpmn:incoming>
<bpmn:incoming>Flow_DirectorToEnd</bpmn:incoming>
<bpmn:outgoing>Flow_HRToEnd</bpmn:outgoing>
</bpmn:serviceTask>
<bpmn:serviceTask id="ServiceTask_NotifyApplicant" name="通知申请人" camunda:class="top.lrshuai.camunda.service.NotificationService">
<bpmn:incoming>Flow_ManagerReject</bpmn:incoming>
<bpmn:incoming>Flow_DirectorReject</bpmn:incoming>
<bpmn:outgoing>Flow_NotifyToEnd</bpmn:outgoing>
</bpmn:serviceTask>
<bpmn:endEvent id="EndEvent_Approved" name="审批通过">
<bpmn:incoming>Flow_HRToEnd</bpmn:incoming>
</bpmn:endEvent>
<bpmn:endEvent id="EndEvent_Rejected" name="审批拒绝">
<bpmn:incoming>Flow_NotifyToEnd</bpmn:incoming>
</bpmn:endEvent>
<bpmn:sequenceFlow id="Flow_StartToApply" sourceRef="StartEvent_1" targetRef="UserTask_ApplyLeave" />
<bpmn:sequenceFlow id="Flow_ApplyToGateway" sourceRef="UserTask_ApplyLeave" targetRef="Gateway_ApprovalPath" />
<bpmn:sequenceFlow id="Flow_GatewayToManager" sourceRef="Gateway_ApprovalPath" targetRef="UserTask_ManagerApprove">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${leaveDays &lt;= 3}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_GatewayToDirector" sourceRef="Gateway_ApprovalPath" targetRef="UserTask_DirectorApprove">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${leaveDays &gt; 3}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_ManagerToEnd" sourceRef="UserTask_ManagerApprove" targetRef="ServiceTask_HRRecord">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${managerApproved == true}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_ManagerReject" sourceRef="UserTask_ManagerApprove" targetRef="ServiceTask_NotifyApplicant">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${managerApproved == false}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_DirectorToEnd" sourceRef="UserTask_DirectorApprove" targetRef="ServiceTask_HRRecord">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${directorApproved == true}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_DirectorReject" sourceRef="UserTask_DirectorApprove" targetRef="ServiceTask_NotifyApplicant">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${directorApproved == false}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_HRToEnd" sourceRef="ServiceTask_HRRecord" targetRef="EndEvent_Approved" />
<bpmn:sequenceFlow id="Flow_NotifyToEnd" sourceRef="ServiceTask_NotifyApplicant" targetRef="EndEvent_Rejected" />
</bpmn:process>
<bpmndi:BPMNDiagram id="BPMNDiagram_1">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="LeaveProcess">
<bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_1">
<dc:Bounds x="173" y="152" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="169" y="188" width="44" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="UserTask_ApplyLeave_di" bpmnElement="UserTask_ApplyLeave">
<dc:Bounds x="260" y="130" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Gateway_ApprovalPath_di" bpmnElement="Gateway_ApprovalPath" isMarkerVisible="true">
<dc:Bounds x="410" y="145" width="50" height="50" />
<bpmndi:BPMNLabel>
<dc:Bounds x="402" y="195" width="67" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="UserTask_ManagerApprove_di" bpmnElement="UserTask_ManagerApprove">
<dc:Bounds x="510" y="80" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="UserTask_DirectorApprove_di" bpmnElement="UserTask_DirectorApprove">
<dc:Bounds x="510" y="180" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="EndEvent_Approved_di" bpmnElement="EndEvent_Approved">
<dc:Bounds x="1042" y="82" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="1038" y="118" width="45" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="EndEvent_Rejected_di" bpmnElement="EndEvent_Rejected">
<dc:Bounds x="1052" y="322" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="1047" y="298" width="45" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="ServiceTask_NotifyApplicant_di" bpmnElement="ServiceTask_NotifyApplicant">
<dc:Bounds x="690" y="310" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="ServiceTask_HRRecord_di" bpmnElement="ServiceTask_HRRecord">
<dc:Bounds x="750" y="80" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="Flow_StartToApply_di" bpmnElement="Flow_StartToApply">
<di:waypoint x="209" y="170" />
<di:waypoint x="260" y="170" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_ApplyToGateway_di" bpmnElement="Flow_ApplyToGateway">
<di:waypoint x="360" y="170" />
<di:waypoint x="410" y="170" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_GatewayToManager_di" bpmnElement="Flow_GatewayToManager">
<di:waypoint x="435" y="145" />
<di:waypoint x="435" y="120" />
<di:waypoint x="510" y="120" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_GatewayToDirector_di" bpmnElement="Flow_GatewayToDirector">
<di:waypoint x="435" y="195" />
<di:waypoint x="435" y="220" />
<di:waypoint x="510" y="220" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_ManagerToEnd_di" bpmnElement="Flow_ManagerToEnd">
<di:waypoint x="610" y="120" />
<di:waypoint x="750" y="120" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_ManagerReject_di" bpmnElement="Flow_ManagerReject">
<di:waypoint x="560" y="160" />
<di:waypoint x="560" y="350" />
<di:waypoint x="690" y="350" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_DirectorToEnd_di" bpmnElement="Flow_DirectorToEnd">
<di:waypoint x="610" y="220" />
<di:waypoint x="710" y="220" />
<di:waypoint x="710" y="120" />
<di:waypoint x="750" y="120" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_DirectorReject_di" bpmnElement="Flow_DirectorReject">
<di:waypoint x="610" y="240" />
<di:waypoint x="650" y="240" />
<di:waypoint x="650" y="320" />
<di:waypoint x="690" y="320" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_HRToEnd_di" bpmnElement="Flow_HRToEnd">
<di:waypoint x="850" y="120" />
<di:waypoint x="941" y="120" />
<di:waypoint x="941" y="100" />
<di:waypoint x="1042" y="100" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_NotifyToEnd_di" bpmnElement="Flow_NotifyToEnd">
<di:waypoint x="790" y="350" />
<di:waypoint x="921" y="350" />
<di:waypoint x="921" y="340" />
<di:waypoint x="1052" y="340" />
</bpmndi:BPMNEdge>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn:definitions>

5、Java服务实现

创建相应的Java服务类来处理业务流程:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
@RestController
@RequestMapping("/api/leave")
public class LeaveProcessController {

@Resource
private RuntimeService runtimeService;

@Resource
private TaskService taskService;

@Resource
private HistoryService historyService;

@Resource
private IdentityService identityService;

/**
* 启动请假流程
*/
@PostMapping("/start")
public ResponseEntity<Map<String, Object>> startLeaveProcess(@RequestBody LeaveApplicationDto application) {
try {
// 设置流程启动者
identityService.setAuthenticatedUserId(application.getApplicant());

Map<String, Object> variables = new HashMap<>();
variables.put("applicant", application.getApplicant());
variables.put("leaveType", application.getLeaveType());
variables.put("startDate", application.getStartDate());
variables.put("endDate", application.getEndDate());
variables.put("leaveDays", application.getLeaveDays());
variables.put("reason", application.getReason());
// 设置审批人(实际项目中可以从用户服务获取)
variables.put("departmentManager", "manager_" + getDepartment(application.getApplicant()));
variables.put("director", "director_company");

var instance = runtimeService.startProcessInstanceByKey("LeaveProcess", variables);

Map<String, Object> result = new HashMap<>();
result.put("processInstanceId", instance.getId());
result.put("message", "请假流程已启动");

return ResponseEntity.ok(result);

} finally {
identityService.clearAuthentication();
}
}

/**
* 获取用户待办任务
* @param userId 用户
*/
@GetMapping("/tasks/{userId}")
public ResponseEntity<List<Map<String, Object>>> getUserTasks(@PathVariable String userId) {
List<Task> tasks = taskService.createTaskQuery()
.taskAssignee(userId)
.orderByTaskCreateTime()
.desc()
.list();

List<Map<String, Object>> taskList = tasks.stream().map(task -> {
Map<String, Object> taskInfo = new HashMap<>();
taskInfo.put("taskId", task.getId());
taskInfo.put("taskName", task.getName());
taskInfo.put("processInstanceId", task.getProcessInstanceId());
taskInfo.put("createTime", task.getCreateTime());
taskInfo.put("dueDate", task.getDueDate());

// 获取流程变量
Map<String, Object> variables = taskService.getVariables(task.getId());
taskInfo.put("applicant", variables.get("applicant"));
taskInfo.put("leaveType", variables.get("leaveType"));
taskInfo.put("leaveDays", variables.get("leaveDays"));
taskInfo.put("startDate", variables.get("startDate"));

return taskInfo;
}).collect(Collectors.toList());

return ResponseEntity.ok(taskList);
}

/**
* 审批任务
* @param taskId 任务id
* @param approved 审批变量
* @param comment 审批意见
*/
@PostMapping("/approve/{taskId}")
public ResponseEntity<Map<String, Object>> approveTask(
@PathVariable String taskId,
@RequestParam Boolean approved,
@RequestParam(required = false) String comment) {

Map<String, Object> variables = new HashMap<>();

Task task = taskService.createTaskQuery().taskId(taskId).singleResult();
if (task == null) {
throw new RuntimeException("任务不存在");
}

// 根据任务ID设置对应的审批变量
if ("UserTask_ManagerApprove".equals(task.getTaskDefinitionKey())) {
variables.put("managerApproved", approved);
variables.put("managerComment", comment);
} else if ("UserTask_DirectorApprove".equals(task.getTaskDefinitionKey())) {
variables.put("directorApproved", approved);
variables.put("directorComment", comment);
}

taskService.complete(taskId, variables);

Map<String, Object> result = new HashMap<>();
result.put("message", "审批完成");
result.put("taskId", taskId);
result.put("approved", approved);

return ResponseEntity.ok(result);
}

/**
* 获取流程历史
* @param processInstanceId 请假实例id
*/
@GetMapping("/history/{processInstanceId}")
public ResponseEntity<Map<String, Object>> getProcessHistory(@PathVariable String processInstanceId) {
HistoricProcessInstance processInstance = historyService
.createHistoricProcessInstanceQuery()
.processInstanceId(processInstanceId)
.singleResult();

List<HistoricActivityInstance> activities = historyService
.createHistoricActivityInstanceQuery()
.processInstanceId(processInstanceId)
.orderByHistoricActivityInstanceStartTime()
.asc()
.list();

Map<String, Object> history = new HashMap<>();
history.put("processInstance", processInstance);
history.put("activities", activities);

return ResponseEntity.ok(history);
}

private String getDepartment(String userId) {
// 模拟根据用户ID获取部门信息
// 实际项目中应该调用用户服务
return "tech"; // 返回部门代码
}
}


// 人事备案
@Slf4j
@Component
public class HRRecordService implements JavaDelegate {

@Override
public void execute(DelegateExecution execution) throws Exception {
String processInstanceId = execution.getProcessInstanceId();
String applicant = (String) execution.getVariable("applicant");
Double leaveDays = (Double) execution.getVariable("leaveDays");
String leaveType = (String) execution.getVariable("leaveType");

log.info("人事备案 - 流程实例: {}, 申请人: {}, 请假类型: {}, 天数: {}",
processInstanceId, applicant, leaveType, leaveDays);

// 这里可以添加实际的HR系统集成逻辑
// 如更新考勤系统、记录请假记录等

execution.setVariable("hrRecorded", true);
execution.setVariable("recordTime", LocalDateTime.now());
}
}


// 发送通知
@Slf4j
@Component
public class NotificationService implements JavaDelegate {

@Override
public void execute(DelegateExecution execution) throws Exception {
String applicant = (String) execution.getVariable("applicant");
Boolean approved = false;
String comment = "";

// 判断是经理审批还是总监审批的拒绝
if (execution.hasVariable("managerApproved")) {
approved = (Boolean) execution.getVariable("managerApproved");
comment = (String) execution.getVariable("managerComment");
} else if (execution.hasVariable("directorApproved")) {
approved = (Boolean) execution.getVariable("directorApproved");
comment = (String) execution.getVariable("directorComment");
}

if (!approved) {
log.info("发送通知 - 申请人: {}, 审批结果: 拒绝, 原因: {}", applicant, comment);
// 这里可以集成邮件、短信、企业微信等通知方式
}
}
}
  • 上面提供:启动请假流程、用户待办任务列表、还有审批接口、获取历史接口
  • 从发起请求流程开始一步一步完成整个流程的

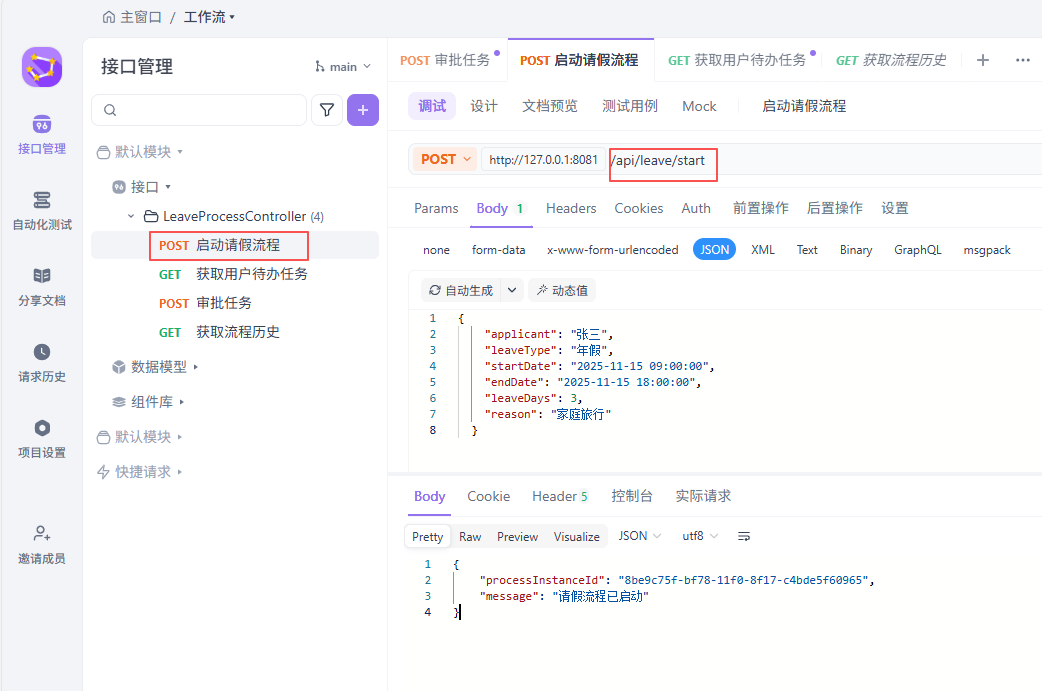

启动请假

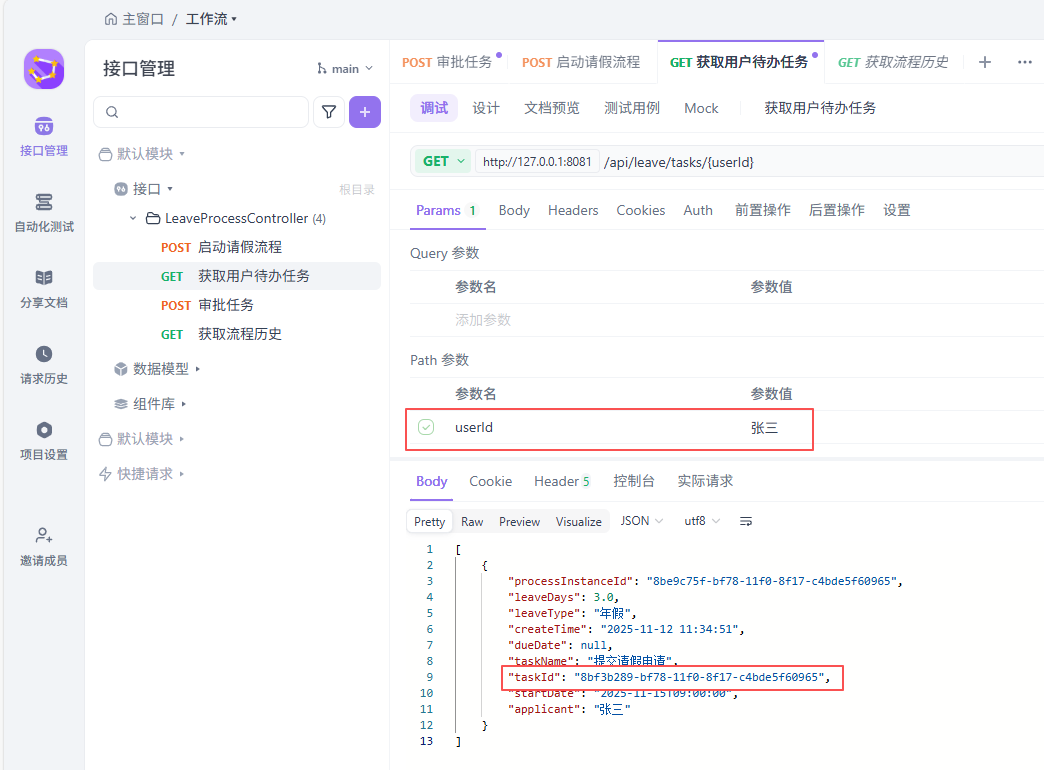

获取用户待办任务

因为我这里设置开始流程之后,必须经过一个由申请人自己处理的“提交请假申请”任务,所以申请人能看到自己的任务(也就是刚提交的请假流程)

工作流进度示例图

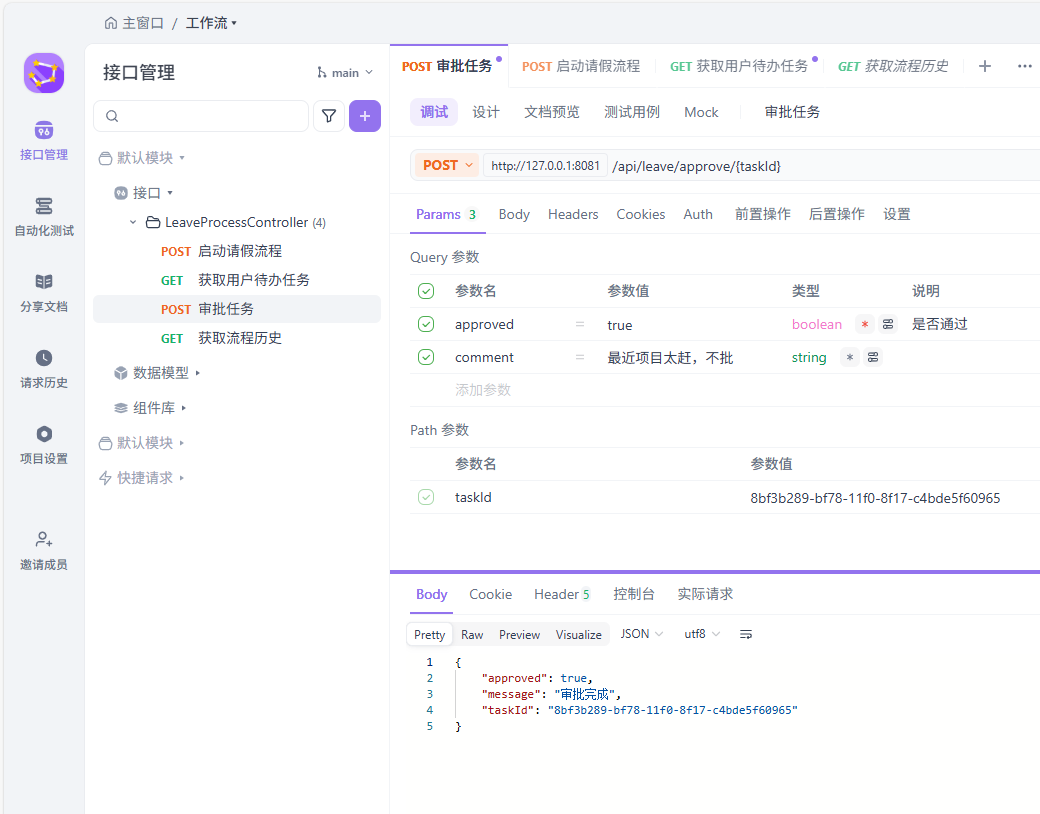

审批流程

当申请人审批之后,就正常的流转到排他网关,通过申请的请假天数判断是给经理审批(<=3天)还是总监审批(>3天)。

我们这里设置的是3天,所以还是经理审批,经理审批的分配变量=${departmentManager},总监分配变量=${director}。在代码我们可以看到departmentManager=manager_tech

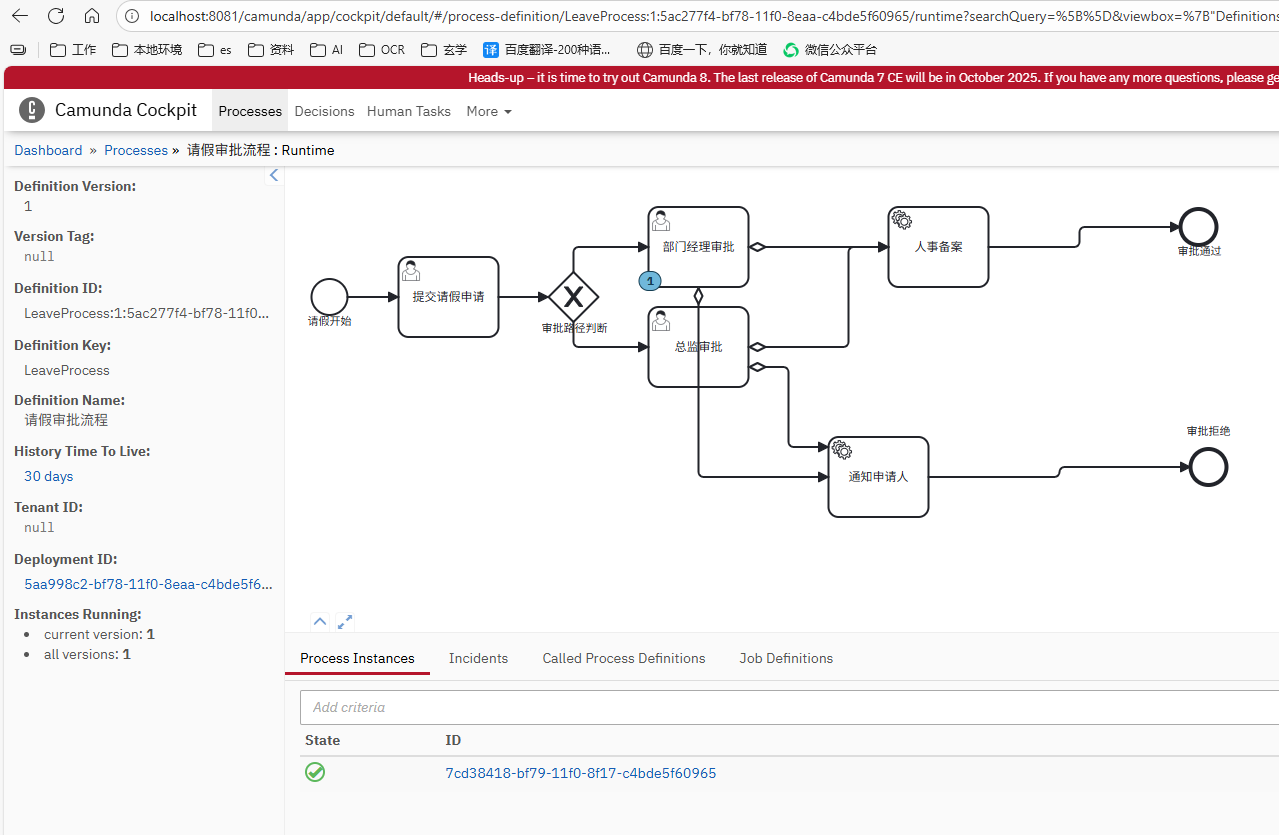

经理工作流进度示例图

用户确认请假事件

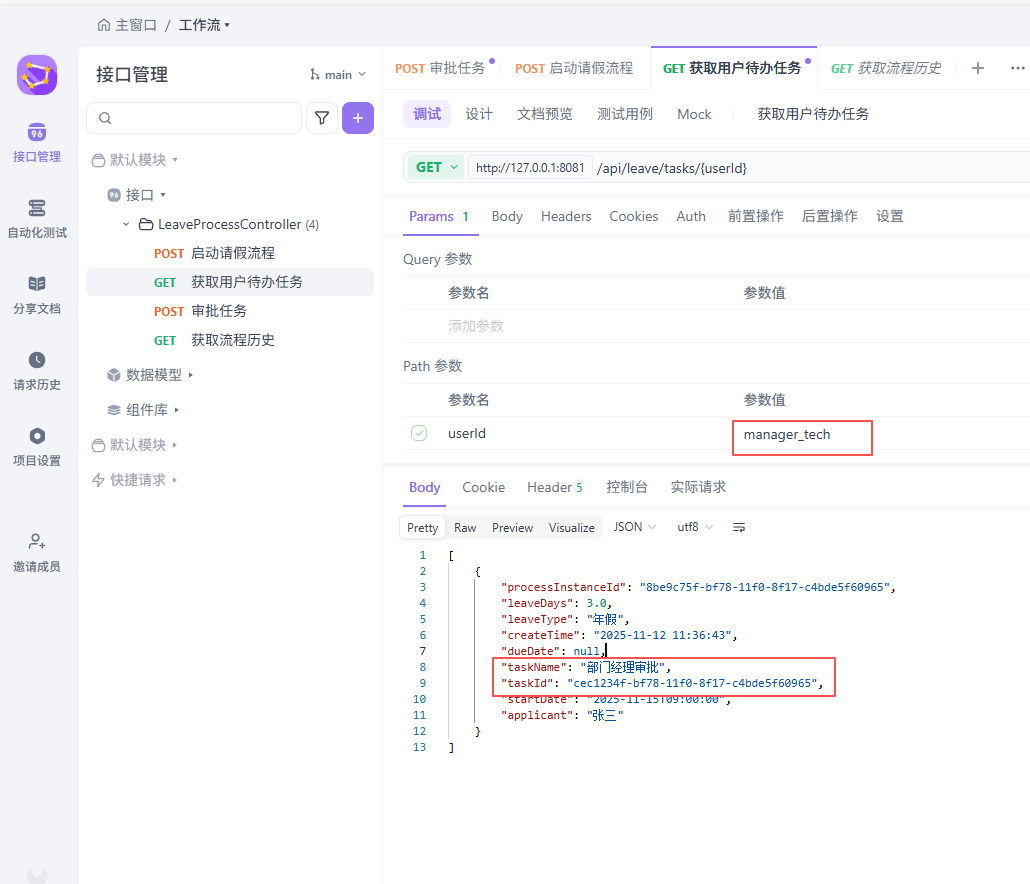

所以通过manager_tech这个人得到待审核的任务进行审核,然后又调用审批接口,完成整个流程。

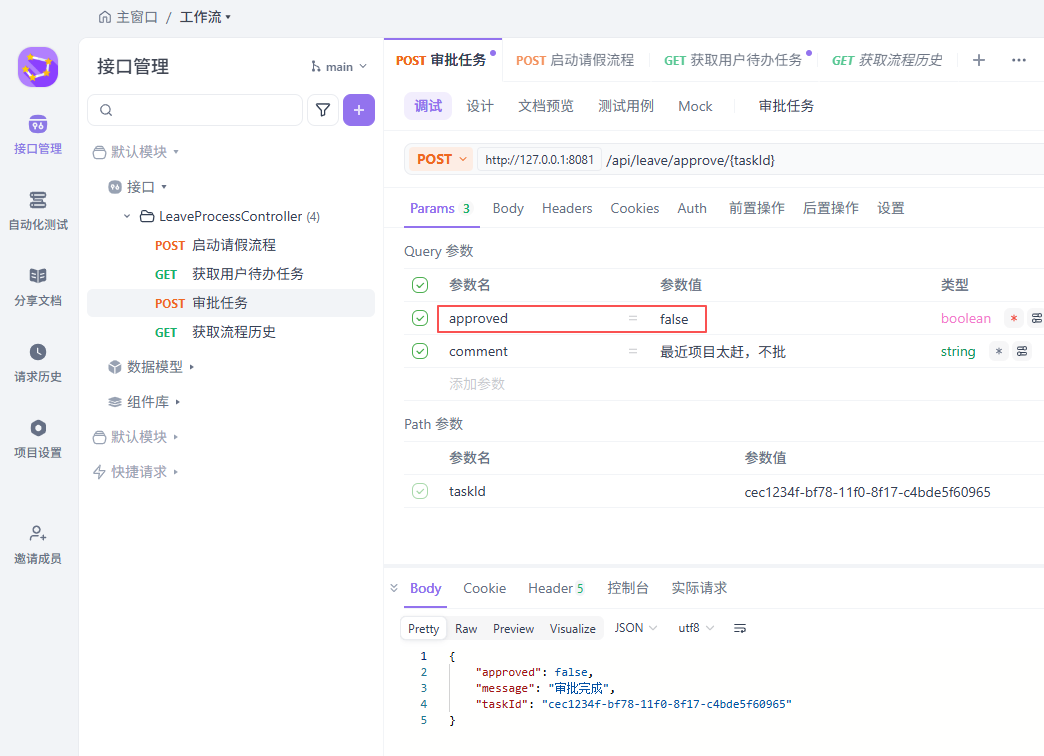

用户确认请假事件

通知用户结果示例图

三、总结

Camunda工作流引擎就像业务流程的”操作系统”,它让复杂的业务流程变得可视化、可管理、可监控

什么时候应该使用工作流引擎?

  • 业务流程复杂,涉及多个环节和角色
  • 业务流程频繁变更
  • 需要详细的过程跟踪和审计
  • 有跨系统流程整合需求

资源获取:

本文完整代码已上传至 GitHub,欢迎 Star ⭐ 和 Fork: https://github.com/rstyro/Springboot/tree/master/springboot-camunda

欢迎分享你的经验
在实际使用工作流时,你有哪些独到的见解或踩坑经验?欢迎在评论区交流讨论,让我们一起进步

您的打赏,是我创作的动力!不给钱?那我只能靠想象力充饥了。
